Best MIG Welding Machine 400 Amps in Mumbai – Heavy-Duty Industrial Performance

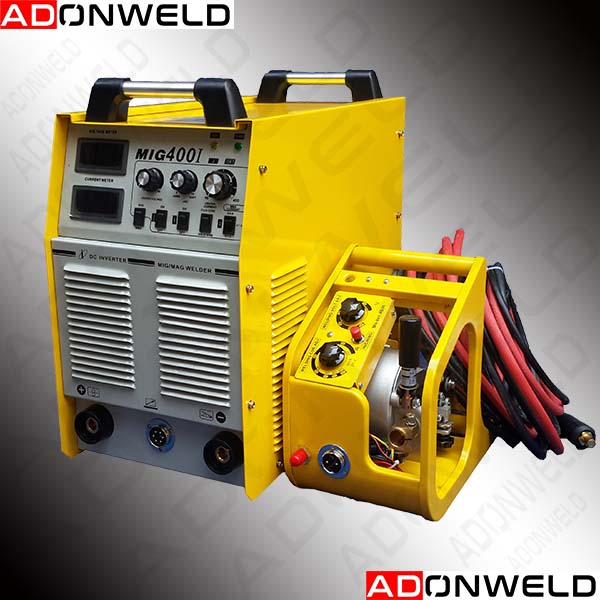

MIG 400 IJ WELDING MACHINE
MIG Welding Machine 400 Amps in Mumbai – Powerful Half-Bridge IGBT Welder for Industrial Fabrication
Looking for a high-performance MIG Welding Machine 400 Amps in Mumbai? Adonweld proudly offers a next-generation, half-bridge modular IGBT-based MIG welder engineered for the most demanding industrial applications. Built with robust components like a 150A 1200VDC IGBT block and a high-grade 60uF 600V capacitor, this machine is a workhorse for shipbuilding yards, structural fabrication, construction sites, and industrial zones across Mumbai, Navi Mumbai, and Thane.
Advanced IGBT Technology & Modular Power Design
Our MIG 400 machine is based on half-bridge modular architecture, delivering stable arc performance and longer duty cycles. Powered by a 150A 1200VDC IGBT block, it ensures low power loss and high-speed switching. This machine uses a 60uF 600V capacitor for power buffering, reducing voltage ripple and enhancing arc stability during long welds.
The power section features:
Modular Bridge Rectifier (3-Phase): Converts AC to smooth DC with high efficiency and low heat generation.
Fast Recovery Output Diodes (2 Nos – 200A): Ensures clean current delivery to the weld puddle, ideal for heavy gauge materials.
Modular Output Design: Reduces component stress, increases lifespan, and improves maintenance flexibility.
Industrial-Grade Accessories Included
This 400-amp MIG machine comes fully loaded with all essential components required by professionals:
36KD MIG Torch: Heavy-duty, ergonomic, and designed to handle high currents with minimal heat buildup.
5-Meter Interconnecting Cable Set: Long reach for fieldwork in fabrication shops or shipyards.
36VAC Wire Feeder Heater: Prevents wire moisture build-up and ensures smooth feeding even in humid environments.
Argon Regulator with Flow Meter: Ensures precise control of shielding gas (when needed), though the machine also supports flux-cored gasless welding.
Complete Connector Kit: Plug-and-play design for minimal setup time at job sites.
PDF
Key Features of MIG Welding Machine 400 Amps – Half-Bridge IGBT Technology
Half-Bridge Modular IGBT Technology
Built with a 150A 1200VDC IGBT block, this machine delivers high efficiency, fast switching, and low energy loss. The modular half-bridge design ensures better thermal stability and long-term durability—perfect for heavy-duty fabrication.Industrial Power Components
Equipped with:60uF 600V Capacitor for stable voltage buffer
3-Phase Modular Bridge Rectifier for efficient AC to DC conversion
Fast Recovery Output Diodes (2 x 200A) to maintain arc stability under continuous load
High Welding Output – Up to 400 Amps
Offers a wide current range (50A–400A), allowing you to weld thicker metals like 10mm–20mm MS and SS plates used in shipbuilding, railways, and construction frameworks.Heavy-Duty 36KD MIG Torch (Air-Cooled)
Comes with a premium 36KD torch, capable of handling high amperage without overheating. Perfect for long, uninterrupted weld cycles.5-Meter Interconnecting Cable Set
Offers extended mobility and reach on job sites or inside large fabrication units.Integrated 36VAC Wire Heater
Prevents moisture buildup inside the welding wire, improving feed consistency and weld quality, especially in humid coastal areas like Mumbai and Navi Mumbai.Flow Meter + Argon/CO₂ Regulator (Included)
Enables optional use with shielding gases when needed. Fine flow control supports both MIG and gasless applications.Digital Control Panel
Intuitive display with voltage and current readouts. Allows precise control of welding parameters for varied material types and thicknesses.Overheat and Overcurrent Protection
Built-in thermal trip circuitry prevents component damage and ensures consistent, safe operation.Durable Industrial Build with Fan Cooling
Rugged steel body with a high-capacity fan ensures long operational life in harsh environments like shipyards, factories, and infrastructure sites.Compact and Service-Friendly Design
Despite its power, the half-bridge modular design reduces component clutter and improves serviceability. Ideal for industrial workshops and mobile teams.
Service Regions
Mumbai Zone
Andheri – 400093, 400099
Marol Naka – 400059
Sakinaka – 400072
Lower Parel – 400013, 400018
Dadar – 400014
Sewri – 400015
Goregaon – 400063
Malad – 400064
Bhandup – 400078
Mulund – 400080
Kurla – 400070
Chembur – 400071
Wadala Road – 400031
Govandi – 400088
Kanjurmarg – 400076
Mumbra – 400612
Navi Mumbai Zone
Ghansoli – 400710
Turbhe – 400705
Rabale – 400701
Pawane – 400705
Taloja – 410208
Kalamboli – 410218
Panvel – 410206
Kharghar – 410210
Belapur – 400614
Thane District Zone
Thane – 400604
Diva – 421204
Bhiwandi – 421302
Kalyan – 421301
Dombivli – 421203
Ulhasnagar – 421003
Ambernath – 421501
Extended Western Zone (Boisar–Palghar–Vasai Belt)
Boisar – 401501, 401506
Palghar – 401404
Vasai Road – 401208
Virar – 401303
Nalasopara – 401209
Applications of MIG Welding Machine 400 Amps – Model MIG 400IJ
The MIG 400IJ – 400 Amps MIG Welding Machine is built for rugged, high-load welding jobs in Mumbai, Thane, Navi Mumbai, and across Maharashtra’s leading industrial hubs. Designed using half-bridge modular IGBT technology, this powerful machine is the ideal companion for demanding applications across industries like shipbuilding, infrastructure, heavy fabrication, and civil engineering.
Top Industry Applications:
Structural Fabrication & Steel Frameworks
Weld thick mild steel beams, channels, columns, and box sections with high arc stability—essential for building infrastructure, warehouses, and bridges.Shipbuilding & Marine Infrastructure
With its 400A output, flux-core support, and durable build, the MIG 400IJ handles outdoor marine fabrication, barge repairs, port cranes, and hull structure welding—even in high humidity.Civil Engineering & Construction Projects
Ideal for on-site welding of scaffolding, rebar cages, baseplates, and load-bearing frames where consistent penetration and speed are critical.Railway and Metro Infrastructure
Widely used in metro station fabrication, foot-over-bridge (FOB) structures, and overhead gantries. The machine supports outdoor yard conditions, making it perfect for remote railway applications.Heavy-Duty Maintenance & Repair Jobs
From repairing heavy equipment to reinforcing worn-out parts, this machine works efficiently on cranes, loaders, and excavator arms.Outdoor Welding in Remote Locations
Thanks to flux-cored wire capability, the machine performs without gas cylinders, making it ideal for high-rise building sites, power plant fabrication, and wind-exposed areas.Automotive and Trailer Fabrication
Excellent for welding truck chassis, body panels, axle mounts, and trailer frames in service centers and mobile garages.Agricultural & Rural Equipment Manufacturing
Used in fabrication of farm implements, fencing structures, water tanker frames, and field repair units.DIY and Small Workshop Applications
For welding enthusiasts and small-scale workshop owners in Mumbai suburbs or Navi Mumbai industrial belts, the MIG 400IJ offers a cost-effective, low-maintenance solution.
Technical Specification of Gasless MIG Welding Machine
| Model | MIG 400IJ IGBT |
| Input supply | AC 415V±15% |
| Phase | 3 |
| Frequency | 50/60 Hz |
| Max input KVA@100% duty cycle | 16 |
| Open circuit voltage | 66 V |
| Current setting range | 40 – 400 A |
| Voltage setting range | 16 – 34 V |
| Maximum welding output | 400 A |
| Welding current @60% duty cycle | 400 A |
| Welding current @100% duty cycle | 310 A |
| Enclosure class | IP21 |
| Efficiency maximum current | 85 % |
| Power factor maximum current | 0.93 |
| Insulation | H |
| Wire feed speed | 1.5 to 20 m/min |
| Suitable wire diameter | 0.8 – 1.4 mm |
| Wire feeder speed control | Stepless |
| Welding torch – rated welding current | 450 A |
| Cooling | Forced air |
| Wire feeder dimensions (HxLxW) | 280 x 450 x 210 mm |
| Power source dimensions (HxLxW) | 530 x 590 x 310 mm |
| Wire feeder weight | 10 kg |
| Power source weight | 55 kg |
Advantages of MIG Welding Machine 400 Amps – MIG 400IJ
The MIG 400IJ 400 Amps Welding Machine from Adonweld is a high-performance solution designed for industrial-grade welding operations. Engineered with half-bridge modular IGBT technology, it ensures maximum output efficiency, arc stability, and extended duty cycle even under continuous heavy-load applications.
Key Advantages:
High Welding Capacity (400A Output)
Suitable for welding 6mm to 20mm thick plates.
Capable of handling heavy fabrication in shipyards, bridges, structures, and port works.
Modular IGBT Half-Bridge Design
Ensures better arc stability, controlled heat input, and energy-efficient operation.
Compatible with Both Gas & Gasless Operation
Use solid wire (with shielding gas) or flux-cored wire (without gas) based on your application.
Versatility for both indoor workshop jobs and outdoor field welding.
Industrial-Grade Components
Equipped with IGBT block 150A / 1200VDC, 60uF / 600V capacitor, 3-phase modular bridge rectifier, and 200A fast-recovery diodes for consistent current delivery.
Supports long working hours without overheating (comes with thermal protection).
Included with Premium Welding Accessories
36KD MIG torch – ergonomic handle and high-duty cycle.
5-meter interconnecting cable – better reach across workstations.
36VAC torch heater, Argon Regulator, and Flow Meter Set – ensures precise gas flow for high-quality welds.
Digital Display for Precise Controls
Adjust voltage and current settings easily for different thicknesses and metaL.
What Type of MIG Wire is Used?
For Mild Steel (MS):
ER70S-6 (Solid MIG Wire) – Used with CO₂ or Argon mix.
E71T-11 / E71T-GS (Flux-Cored Wire) – Used for gasless welding.
Available in 0.8mm, 1.0mm, 1.2mm
For Stainless Steel (SS):
ER308L / ER309L Solid Wire – Requires pure Argon or Argon + CO₂ shielding.
Recommended only for indoor applications or enclosed workshops.
Not Recommended: Flux-cored wires are not suitable for stainless steel in most industrial environments due to corrosion and weld quality issues.
Why Choose MIG Welding Machine 400 Amps with Half-Bridge Technology?
Choosing the MIG 400IJ – 400 Amps MIG Welding Machine with Half-Bridge IGBT Technology means you’re investing in superior arc control, energy efficiency, and unmatched reliability for heavy-duty fabrication. Built for shipyards, infrastructure, automotive, and industrial workshops, this machine delivers consistent performance in demanding environments.
1. Advanced Half-Bridge IGBT Technology
Unlike traditional full-bridge machines, our half-bridge architecture minimizes switching losses and improves thermal performance. This results in:
Faster switching speed and arc response
Better energy conversion (less heat, more weld power)
Extended life of internal components due to reduced stress
2. Precision Welding Output (Up to 400A)
Welds thick MS plates (up to 20mm) effortlessly
Deep penetration for structural and pressure-bearing joints
Smooth, splash-free welds with precise control over voltage/current
3. Built for Continuous Industrial Use
Modular design for easy repair and part replacement
Rugged components: high-quality capacitors, rectifiers, and diodes
Protected by thermal overload, overvoltage, and short-circuit systems
4. Versatile for MS & SS Welding
MS Welding: Use with ER70S-6 solid wire or E71T-GS/E71T-11 flux-cored wire
SS Welding (Indoor): Use ER308L/ER309L solid wire with Argon shielding
Compatible with 0.8mm, 1.0mm, 1.2mm MIG wires
5. Better Than Conventional Machines
| Feature | Half-Bridge MIG 400IJ | Traditional Machines |
|---|---|---|
| Arc Stability |  Excellent |  Varies with load |
| Efficiency | High (low heat loss) | More energy drain |
| Maintenance | Easy modular service | Complex, costly repairs |
| Duty Cycle | Extended | Limited under load |
| Weld Quality (MS/SS) | Superior | Inconsistent on SS |
Frequently Asked Questions (FAQ) – MIG Welding Machine 400 Amps
1. What is the maximum welding thickness supported by MIG 400 amps?
MIG 400 amps machines can weld up to 20mm thick mild steel plates, making them ideal for structural fabrication and heavy-duty applications.
2. Is the MIG 400 suitable for both MS and SS welding?
Yes. It supports Mild Steel (MS) with solid or flux-cored wire and Stainless Steel (SS) using ER308L or ER309L wires with Argon shielding gas.
3. What type of MIG wire is used in a 400 amps MIG welding machine?
It supports ER70S-6 solid wire (for gas MIG welding) and E71T-GS / E71T-11 flux-cored wires (for gasless welding). Wire diameter supported: 0.8mm, 1.0mm, 1.2mm.
4. What is the duty cycle of MIG 400IJ?
MIG 400IJ offers a high-duty cycle of 60% to 100%, ensuring uninterrupted welding in industrial environments.
5. Is MIG 400IJ compatible with a single-phase connection?
This model is three-phase 415V, suitable for industrial power setups. For single-phase needs, a separate model must be selected.
6. Does MIG 400IJ support gasless (flux-cored) welding?
Yes. It is compatible with flux-cored wires like E71T-11, allowing gasless MIG welding in outdoor or windy conditions.
7. What is the weight and size of the MIG 400IJ machine?
The MIG 400IJ weighs around 26–30 kg, with compact dimensions suitable for both portable use and fixed workshop installation.
8. What is the difference between half-bridge and full-bridge MIG machines?
Half-bridge topology offers better efficiency, reduced heat loss, and superior arc control compared to traditional full-bridge systems.
9. Can this machine be used for fabrication industries?
Yes. MIG 400IJ is ideal for steel fabrication, structural welding, port maintenance, shipbuilding, and repair operations.
10. What cooling system does the MIG 400 use?
It features forced air cooling and thermal overload protection to ensure long-lasting performance.
11. What welding torch is compatible with MIG 400 amps?
It works with 36KD industrial MIG torch, designed to handle high amperage and extended duty cycles.
12. Is this machine suitable for mobile welding operations?
Yes. The machine is compact, rugged, and portable, especially useful for mobile fabrication jobs across Mumbai, Thane, and Navi Mumbai.
